经典MFC界面和Ribbon界面框架对比(单文档为例)

来源: 未知 分享至:

IDE为:VS2008+SP1

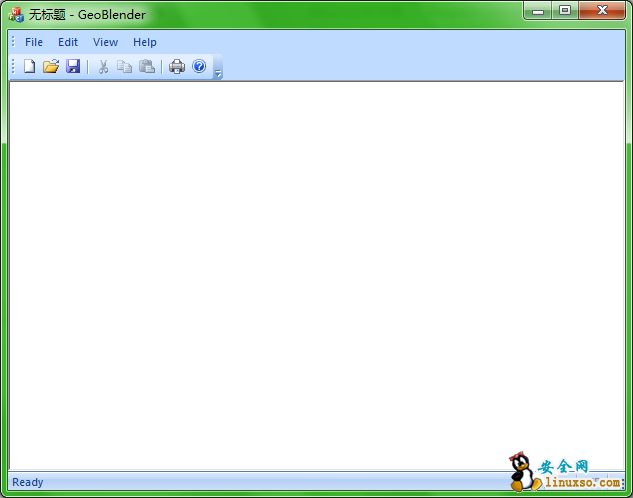

A为经典MFC单文档界面:

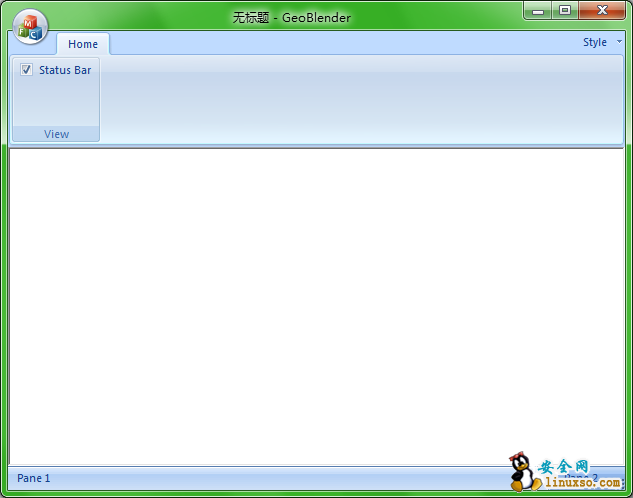

B为Ribbon风格的MFC单文档界面:



在生成A和B的基础框架代码之后,通过对比工具,发现这两种不同风格的界面主要在MainFrame类中存在一些差异。

应用程序类(CXXXApp)的InitInstance()函数中,B风格在调用InitContextMenuManager()之后,执行了InitShellManager()的初始化。

该句代码主要是为CMFCShellTreeCtrl(文件目录树)和CMFCShellListCtrl(文件列表)的使用做一些Shell的初始化工作。

+++++++++++++++++++++++++++++++++++++++++++++

MainFrm.h数据成员变量存在一定的对应关系

A

CMFCToolBar       m_wndToolBar;   // 工具栏
CMFCToolBarImages m_UserImages; // 工具栏使用的图片资源
CMFCMenuBar       m_wndMenuBar;  // 菜单栏
CMFCStatusBar     m_wndStatusBar; // 状态栏

B   无菜单栏

CMFCRibbonBar m_wndRibbonBar;      // Ribbon工具条
CMFCToolBarImages m_PanelImages;  // 工具栏使用的图片资源
CMFCRibbonApplicationButton m_MainButton; // 左上角按钮
CMFCRibbonStatusBar m_wndStatusBar; // 状态栏

MainFrm.cpp中的主要差异代码还是体现在OnCreate()函数中

A

// 创建并初始化主界面上的各个控件
int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
	if (CFrameWndEx::OnCreate(lpCreateStruct) == -1)
		return -1;

	BOOL bNameValid;
	// set the visual manager and style based on persisted value
	OnApplicationLook(theApp.m_nAppLook);

	if (!m_wndMenuBar.Create(this))
	{
		TRACE0("Failed to create menubar\n");
		return -1;      // fail to create
	}

	m_wndMenuBar.SetPaneStyle(m_wndMenuBar.GetPaneStyle() | CBRS_SIZE_DYNAMIC | CBRS_TOOLTIPS | CBRS_FLYBY);

	// prevent the menu bar from taking the focus on activation
	CMFCPopupMenu::SetForceMenuFocus(FALSE);

	if (!m_wndToolBar.CreateEx(this, TBSTYLE_FLAT, WS_CHILD | WS_VISIBLE | CBRS_TOP | CBRS_GRIPPER | CBRS_TOOLTIPS | CBRS_FLYBY | CBRS_SIZE_DYNAMIC) ||
		!m_wndToolBar.LoadToolBar(theApp.m_bHiColorIcons ? IDR_MAINFRAME_256 : IDR_MAINFRAME))
	{
		TRACE0("Failed to create toolbar\n");
		return -1;      // fail to create
	}

	CString strToolBarName;
	bNameValid = strToolBarName.LoadString(IDS_TOOLBAR_STANDARD);
	ASSERT(bNameValid);
	m_wndToolBar.SetWindowText(strToolBarName);

	CString strCustomize;
	bNameValid = strCustomize.LoadString(IDS_TOOLBAR_CUSTOMIZE);
	ASSERT(bNameValid);
	m_wndToolBar.EnableCustomizeButton(TRUE, ID_VIEW_CUSTOMIZE, strCustomize);

	// Allow user-defined toolbars operations:
	InitUserToolbars(NULL, uiFirstUserToolBarId, uiLastUserToolBarId);

	if (!m_wndStatusBar.Create(this))
	{
		TRACE0("Failed to create status bar\n");
		return -1;      // fail to create
	}
	m_wndStatusBar.SetIndicators(indicators, sizeof(indicators)/sizeof(UINT));

	// TODO: Delete these five lines if you don't want the toolbar and menubar to be dockable
	m_wndMenuBar.EnableDocking(CBRS_ALIGN_ANY);
	m_wndToolBar.EnableDocking(CBRS_ALIGN_ANY);
	EnableDocking(CBRS_ALIGN_ANY);
	DockPane(&m_wndMenuBar);
	DockPane(&m_wndToolBar);


	// enable Visual Studio 2005 style docking window behavior
	CDockingManager::SetDockingMode(DT_SMART);
	// enable Visual Studio 2005 style docking window auto-hide behavior
	EnableAutoHidePanes(CBRS_ALIGN_ANY);

	// Enable toolbar and docking window menu replacement
	EnablePaneMenu(TRUE, ID_VIEW_CUSTOMIZE, strCustomize, ID_VIEW_TOOLBAR);

	// enable quick (Alt+drag) toolbar customization
	CMFCToolBar::EnableQuickCustomization();

	return 0;
}



B  OnCreate()中调用InitializeRibbon()完成Ribbon工具条的初始化工作

// 创建并初始化主界面上的各个控件
int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
	if (CFrameWndEx::OnCreate(lpCreateStruct) == -1)
		return -1;

	BOOL bNameValid;
	// set the visual manager and style based on persisted value
	OnApplicationLook(theApp.m_nAppLook);

	m_wndRibbonBar.Create(this);
	InitializeRibbon();

	if (!m_wndStatusBar.Create(this))
	{
		TRACE0("Failed to create status bar\n");
		return -1;      // fail to create
	}

	CString strTitlePane1;
	CString strTitlePane2;
	bNameValid = strTitlePane1.LoadString(IDS_STATUS_PANE1);
	ASSERT(bNameValid);
	bNameValid = strTitlePane2.LoadString(IDS_STATUS_PANE2);
	ASSERT(bNameValid);
	m_wndStatusBar.AddElement(new CMFCRibbonStatusBarPane(ID_STATUSBAR_PANE1, strTitlePane1, TRUE), strTitlePane1);
	m_wndStatusBar.AddExtendedElement(new CMFCRibbonStatusBarPane(ID_STATUSBAR_PANE2, strTitlePane2, TRUE), strTitlePane2);

	// enable Visual Studio 2005 style docking window behavior
	CDockingManager::SetDockingMode(DT_SMART);
	// enable Visual Studio 2005 style docking window auto-hide behavior
	EnableAutoHidePanes(CBRS_ALIGN_ANY);

	// Navigation pane will be created at left, so temporary disable docking at the left side:
	EnableDocking(CBRS_ALIGN_TOP | CBRS_ALIGN_BOTTOM | CBRS_ALIGN_RIGHT);

	// Outlook bar is created and docking on the left side should be allowed.
	EnableDocking(CBRS_ALIGN_LEFT);
	EnableAutoHidePanes(CBRS_ALIGN_RIGHT);

	return 0;
}

// 初始化Ribbion工具条
void CMainFrame::InitializeRibbon()
{
	BOOL bNameValid;
	CString strTemp;

	// Load panel images:
	m_PanelImages.SetImageSize(CSize(16, 16));
	m_PanelImages.Load(IDB_BUTTONS);

	// Init main button:
	m_MainButton.SetImage(IDB_MAIN);
	m_MainButton.SetText(_T("\nf"));
	m_MainButton.SetToolTipText(strTemp);

	m_wndRibbonBar.SetApplicationButton(&m_MainButton, CSize (45, 45));

	// Add "Home" category with "Clipboard" panel:
	bNameValid = strTemp.LoadString(IDS_RIBBON_HOME);
	ASSERT(bNameValid);
	CMFCRibbonCategory* pCategoryHome = m_wndRibbonBar.AddCategory(strTemp, IDB_WRITESMALL, IDB_WRITELARGE);

	// Create and add a "View" panel:
	bNameValid = strTemp.LoadString(IDS_RIBBON_VIEW);
	ASSERT(bNameValid);
	CMFCRibbonPanel* pPanelView = pCategoryHome->AddPanel(strTemp, m_PanelImages.ExtractIcon (7));

	bNameValid = strTemp.LoadString(IDS_RIBBON_STATUSBAR);
	ASSERT(bNameValid);
	CMFCRibbonButton* pBtnStatusBar = new CMFCRibbonCheckBox(ID_VIEW_STATUS_BAR, strTemp);
	pPanelView->Add(pBtnStatusBar);

	// Add elements to the right side of tabs:
	bNameValid = strTemp.LoadString(IDS_RIBBON_STYLE);
	ASSERT(bNameValid);
	CMFCRibbonButton* pVisualStyleButton = new CMFCRibbonButton(-1, strTemp, -1, -1);

	pVisualStyleButton->SetMenu(IDR_THEME_MENU, FALSE /* No default command */, TRUE /* Right align */);

	bNameValid = strTemp.LoadString(IDS_RIBBON_STYLE_TIP);
	ASSERT(bNameValid);
	pVisualStyleButton->SetToolTipText(strTemp);
	bNameValid = strTemp.LoadString(IDS_RIBBON_STYLE_DESC);
	ASSERT(bNameValid);
	pVisualStyleButton->SetDescription(strTemp);
	m_wndRibbonBar.AddToTabs(pVisualStyleButton);
}



PS: CXXXApp不再由CWinApp派生,而是由CWinAppEx派生

      CMainFrame不再由CFrameWnd派生,而是由CFrameWndEx派生
